F.A.Q.

Any questions? Here you will find answers to frequently asked questions.

Our customer service is also happy to help you on
+49 (0) 202 260 464 0!

Logo-QUIO-GmbH

We have the right solution for your project to suit your application.
The matrix below shows you the essential key facts in a clearly arranged form.



             DE-950

              DE-960

           DE-ABCM6



QDE-950-4-Modbus-RFID-NFC-Leser-Lesegerät-Ladesäulen freischalten

Quio-QDE-960-Modbus-Lesegerät-für Ladesäulen-E-Charging

QDE-ABCM6 Modul-platzsparend einzubauen-kompakt-individuell programmierbar-HID-Version-RFID

In housing                    x                    x
IP 65 Waterproof                    x                    x
Modbus RTU (RS-485)                    x                    x
RS-485                    x                    x
RS-232                    x                    x                    x
USB                      x
Built-in module / circuit board                      x
Small size                      x
ISO 14443 A/B                    x                    x                    x
ISO 15693                     x
ISO 18092 (NFC)                    x                    x                    x
Keypad                     x
Dimensions (mm)         46 x 105 x 20          60 x 115 x 25        43.5 x 32 x 5

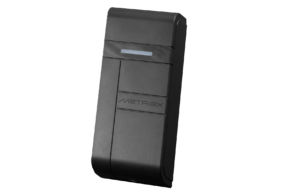

For contactless application: DE-950

You need a waterproof reader for RFID and NFC with Modbus protocol? Then our DE-950 is the right choice.

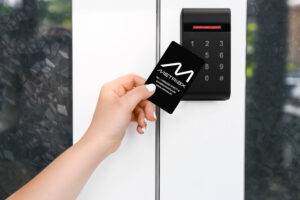

For contactless application with additional number pad: DE-960

Would you like an additional keypad and ISO 15693 support? Then the DE-960 is perfect.

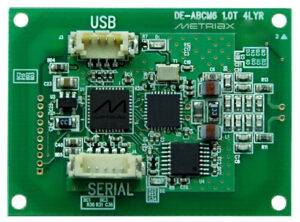

Standalone RFID antenna module for installation: DE-ABCM6

You need a very small reader for installation? Then the DE-ABCM6 with integrated antenna is an excellent choice.

RFID / NFC Readers

Our RFID / NFC readers have various interfaces and support different protocols.
We will find the right device for your project.
The matrix below shows you the most important key facts in a clearly arranged form.



               DE-950

               DE-960

            DE-ABCM6



QDE-950-4-Modbus-RFID-NFC-Leser-Lesegerät-Ladesäulen freischalten

Quio-QDE-960-Modbus-Lesegerät-für Ladesäulen-E-Charging

QDE-ABCM6 Modul-platzsparend einzubauen-kompakt-individuell programmierbar-HID-Version-RFID

Modbus RTU (RS-485)                     x                     x
Wiegand 32/34/64/66                     x                     x
RS-485                     x                     x
RS-232                     x                     x                     x
USB                       x
ISO 14443 A/B                     x                     x                     x
ISO 15693                      x
ISO 18092 (NFC)                     x                     x                     x
Keypad                      x
Dimensions (mm)          46 x 105 x 20           60 x 115 x 25          43.5 x 32 x 5

For contactless application: DE-950

You need a waterproof reader for RFID and NFC with Modbus protocol? Then our DE-950 is the right choice.


For contactless application with additional number pad: DE-960

Would you like an additional keypad and ISO 15693 support? Then the DE-960 is perfect.


Standalone antenna module for installation: DE-ABCM6

You need a very small reader for installation? Then the DE-ABCM6 with integrated antenna is an excellent choice.




How is the product delivered?

All devices are available with different firmware versions. You will receive the version suitable for your application.


Can I program my own firmware?

Of course you can program your own firmware. For this purpose, we will gladly provide you with a free SDK / FDK on request.

Matching cards / key fobs

Of course you can also order the matching cards, keyfobs and key rings directly from us.
There are different chip types to choose from. An individual design with your company logo or freely according to your wishes is also possible. We will be happy to advise you individually!


RFID Blocking Cards

Quio-RFID-NFC-Blocking_Card-Blocker_Karte

Criminals are increasingly trying to secretly read out sensitive data. This danger exists above all in the crowds of subways or in queues. If you want to protect yourself and your customers against this, we recommend the use of so-called RFID Blocking Cards, also called Blocker Cards or Shield Cards. These have the well-known handy ISO card format and effectively protect against unwanted reading by disturbing the reading frequency. This blocks the data transmission and makes it impossible for third parties to read the data. The Blocking Card is simply stored with the RFID card in the wallet. We can also deliver Blocking Cards in your individual design.

Where can I find information on pin assignment, data sheets and more?

On the page of the respective product we have compiled some technical documents for you. Is there any information missing? Please contact us, we will be happy to advise you personally!
